Air Bacteria Sampler
Product Description

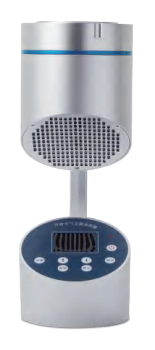

The LS-SC100 Active air bacteria sampler is a porous suction type airborne bacteria sampler. The instrument structure is unique and novel, divided into two parts, the upper part includes the sampling port, plate and air pump, the lower part includes the controller and battery. The sampling opening and housing of the sampler are made of aviation aluminum. The surface is treated with closed holes to facilitate sterilization and disinfection before use. This instrument has the advantages of large sampling volume, stable performance and simple operation, reaching the advanced level of similar products, and is an ideal sampling instrument for the concentration of floating airborne bacteria in the testing departments of pharmaceutical factories, hospitals, biological products, food processing and public places.
Principle
Airborne bacteria sampler is a handheld device with built-in lithium battery. Based on the Anderson impact principle, the impact velocity is 16m/s, which is equivalent to an Anderson impact scale of eight. The air is sucked in through the sampling head, and hits a 90mm plate coated with AGAR. In this way, microbes in the air will be “captured” onto the AGAR. Bacteria colonies can be counted after the petri dish gets cultured in suitable conditions.
Product Features
1. Large sampling volume
2. Equipped with remote controller, more convenient operation;
3. Brushless motor, light noise, durable service;
4. The whole machine is made of high quality aluminum alloy processing, corrosion resistance, easy to clean;
5. The sampling head can be adjusted from horizontal to vertical,90 degrees adjustbale, to meet the multi-angle sampling
Technical Specifications
| Flow | 100L/min |
| Impact velocity | ≥15m/s |
| Sampling Angle | the sampling head can be adjusted from horizontal to vertical according to the needs, to meet the multi-angle sampling |
| Sampling Period | 2 – 300 times, or continuous measurements |
| Sample Range | 1 – 9999L flow range adjustable |
| Permissions | multi-level rights management; 100 programmable operational users; supporting multi-level user permission management and audit trail |
| Culture Dish Size | Φ90 |
| Remote Controller | each remote control can control multiple same devicesmanagement and audit trail |
| Display | color touch screen with Chinese or English display of sampling amount, sampling time, etc. |
| Data Storage | the instrument stores 1000 sets of data, which can be exported with USB stick; providing computer collection software; data includes date, time and place, operator, sampling time, volume, period and statement |
| Full power working time | ≥4.5H providing charger |
| Dimensions | Φ120*325mm³ |
| Weight | 3kg |
