0.1μm Airborne Particle Counter
Product Description
This portable particle counter supports a complete contamination control solution including clean area monitoring while meeting global requirements for environmental monitoring and data integrity. It has eight channels, and the smallest particle can be detected is 0.1µm. Designed for intuitive and reliable particle counting in the air of clean room. It meets international cleanroom certification standards including ISO 14644-1. It can be widely used in semiconductor manufacturing processes, optics, chemistry, food, cosmetics, medicine and health, biological products, aerospace and other areas.
Product Features
1. Minimum particle size 0.1μm;
2. Particle counts can be displayed simultaneously up to 8 channels;
3. Particle size ranges from 0.1 to 5.0 microns;
4. Long life laser diode technology;
5. 7 inch color touch screen interface;
6. Large data storage (1,000,000 sets);
7. 304 stainless steel housing;
Technical Specifications

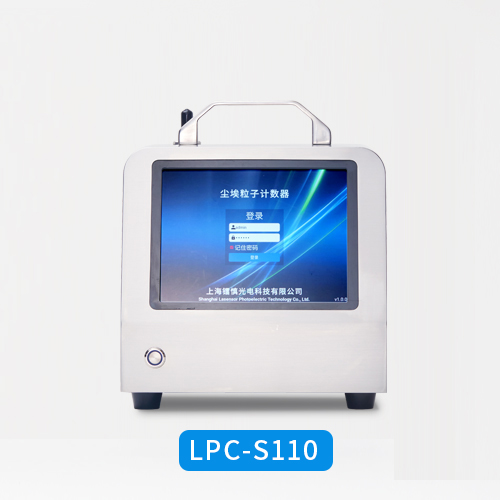

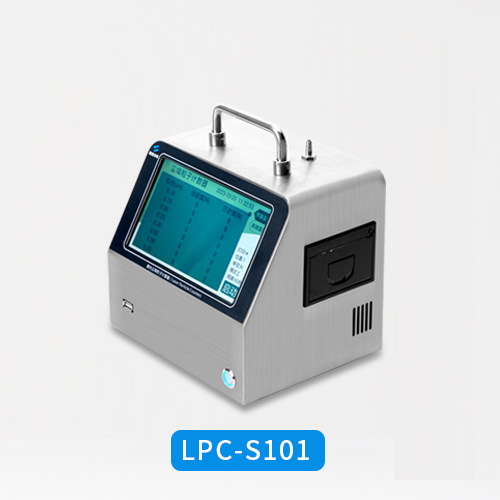

| Model | LPC-S101 | LPC-S110 |
| Flow | 2.83L/min | 28.3L/min |
| PM Ranges | 0.1μm、0.15μm、0.2μm、0.25μm、0.3μm、0.5μm、 1.0μm、5.0μm 8 channels | |
| Counting Efficiency | <50%@0.1μm;100%@>0.15μm | |
| Indication Error | 50±20%FS | |
| Maximum Concentration | 35000PCS/L | |
| Zero Count Level | ≤10min | |
| Laser Source | Long life semiconductor laser source | |
| Display | 7 inch color touch screen interface | |
| Communication | RS232 | |
| Data Storage | At least 100,000 pcs of data records | |
| Vacuum | Built-in pump, internal automatic flow control | |
| Power Supply | Lithium battery life of about 5h (adapter with 220V AC) | |
| Housing Material | Stainless steel | |
| Weight | 3.6kg | 8.0kg |
| Dimensions | 200mm(W)x180mm(H)x160mm(D)
(excl. the nozzle, handle and other accessories) |
250mm(W)×215mm(H)×220mm(D)
(excl. the nozzle, handle and other accessories) |
| Operating Environment | Temperature 5° C ~40 ° C, humidity 0~98% (no condensation) | |
| Storage Environment | Temperature -15° C ~60° C, humidity 0~98% (no condensation) | |
This portable particle counter supports a complete contamination control solution including clean area monitoring while meeting global requirements for environmental monitoring and data integrity. It has eight channels, and the smallest particle can be detected is 0.1µm. Designed for intuitive and reliable particle counting in the air of clean room. It meets international cleanroom certification standards including ISO 14644-1. It can be widely used in semiconductor manufacturing processes, optics, chemistry, food, cosmetics, medicine and health, biological products, aerospace and other areas.
